TPS61194-Q1 Datasheet - Texas Instruments

TPS61194-Q1 - Low-EMI Automotive LED Driver

The TPS61194-Q1 is an automotive high-efficiency, low-EMI, easy-to-use LED driver with integrated DCDC converter.

The DC-DC converter supports both boost and SEPIC mode operation.

The device has four high-precision current sinks that can be combined for higher current capability.

The DC-DC converter

TPS61194-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified With the Following Results:

* Device Temperature Grade 1:

* 40°C to +125°C Ambient Operating Temperature Range

* Input Voltage Operating Range 4.5 V to 40 V

* Four High-Precision Current Sink

TPS61194-Q1-etcTI.pdf

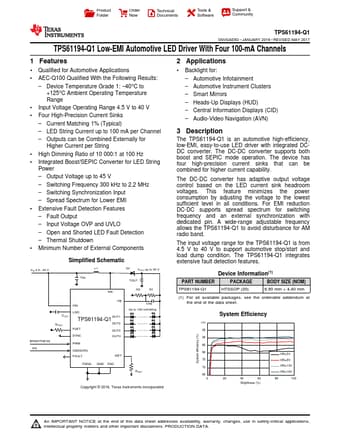

Preview of TPS61194-Q1 PDF
TPS61194-Q1 Datasheet Preview Page 2 TPS61194-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

TPS61194-Q1

Manufacturer:

Texas Instruments ↗

File Size:

853.37 KB

Description:

Low-emi automotive led driver.
