TPS61195 - WLED Driver

Texas Instruments

📥 Download Datasheet

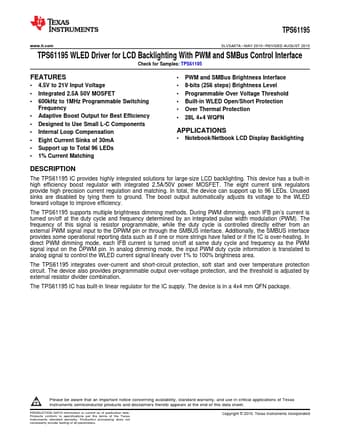

TPS61195 Datasheet Preview — Preview of TPS61195 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TPS61195
Manufacturer: Texas Instruments ↗
File Size: 911.65 KB
Datasheet: TPS61195-etcTI.pdf
Description: WLED Driver

TPS61195 Product details

Description

The TPS61195 IC provides highly integrated solutions for large-size LCD backlighting.

Features

1.
4.5V to 21V Input Voltage.
Integrated 2.5A 50V MOSFET.
600kHz to 1MHz Programmable Switching Frequency.
Adaptive Boost Output for Best Efficiency.
Designed to Use Small L-C Components.
Internal Loop Compensation.
Eight Current Sinks of 30mA.
Support up to Total 96 LEDs.
1% Current Matching.
PWM and SMBus Brightness Interface.
8-bits (256 steps) Brightness Level.
Programmable Over Volta.
