TPS61230 Datasheet - Texas Instruments

High Efficiency Synchronous Step Up Converters

TPS61230 Features

* 1 Input Voltage Range: 2.3 V to 5.5 V

* Output Voltage Range: 2.5 V to 5.5 V

* Up to 96% Efficiency Synchronous Boost Converter

* 3.3-V to 5-V Power Conversion with 2.1-A Output Current

* Input Supply Voltage Supervisor with Adjustable Threshold/Hysteresis

TPS61230 General Description

The TPS6123x device family is a high efficiency synchronous step up converter with compact solution size. It is optimized for products powered by a onecell Li-Ion battery, or a regulated power rail of 3.3 V. The IC integrates a 5-A switch and is capable of delivering output currents up to 2.1 A at a.

TPS61230 Datasheet (2.02 MB)

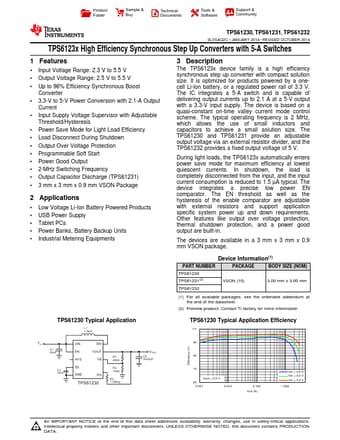

TPS61230 Datasheet Preview — Preview of TPS61230 PDF

Datasheet Details

Part number:

TPS61230

Manufacturer:

Texas Instruments ↗

File Size:

2.02 MB

Description:

High efficiency synchronous step up converters.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPS61230, TPS61231, TPS61232 SLVSAQ2C JANUARY 2014.
