TPS62621 6-MHz High-Efficiency Step-Down Converter

The TPS6262x device family provides high-frequency synchronous step-down DC/DC converters optimized for battery-powered portable applications. Intended for low-power applications, the TPS6262x devices support up to 600 mA load current, and allow the use of low cost chip inductor and capacitors. With.

TPS62621 Features

* 1 Wide Input Voltage Range from 2.3 V to 5.5 V

* 6 MHz Regulated Frequency Operation

* 90% Efficiency at 6 MHz Operation

* 31 μA Quiescent Current

* Best in Class Load and Line Transient

* ±2% Total DC Voltage Accuracy

* Automatic PFM/PWM Mode

TPS62620-etcTI.pdf

This datasheet PDF includes multiple part numbers: TPS62621, TPS62620. Please refer to the document for exact specifications by model.

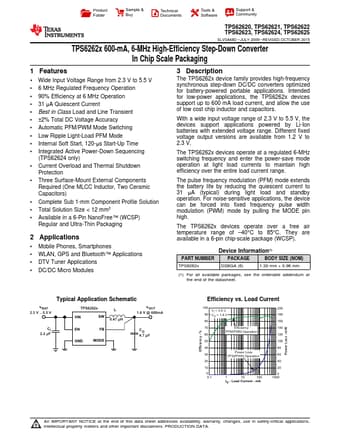

TPS62621 Datasheet Preview Page 2 TPS62621 Datasheet Preview Page 3

Datasheet Details

Part number:

TPS62621, TPS62620

Manufacturer:

Texas Instruments ↗

File Size:

1.28 MB

Description:

6-mhz high-efficiency step-down converter.

Note:

This datasheet PDF includes multiple part numbers: TPS62621, TPS62620.
Please refer to the document for exact specifications by model.
