TPSM8287A15BAM, TPSM8287A12BAM, Parallelable Step-Down Power Module

TPSM8287A12M, TPSM8287A15M SLVSHR7 * AUGUST 2024 TPSM8287A1xM 2.7V to 6V Input, 12A and 15A, Parallelable Step-Down Power Module With I2C Inte.
The TPSM8287A1xM is a family of pin-to-pin, stepdown, DC/DC power modules with differential remote sensing and I2C interface.

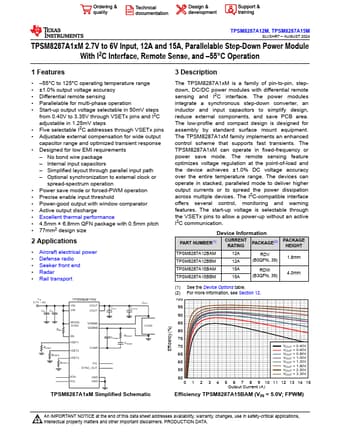

datasheet Preview Page 1 from Datasheet4u.com

TPSM8287A12BAM-etcTI.pdf

TPSM8287A15BAM Datasheet Preview — This datasheet PDF includes multiple part numbers: TPSM8287A15BAM, TPSM8287A12BAM. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TPSM8287A15BAM, TPSM8287A12BAM

Manufacturer:

Texas Instruments ↗

File Size:

3.11 MB

Description:

Parallelable Step-Down Power Module

Note:

This datasheet PDF includes multiple part numbers: TPSM8287A15BAM, TPSM8287A12BAM.
Please refer to the document for exact specifications by model.

Features

* 55°C to 125°C operating temperature range
* ±1.0% output voltage accuracy
* Differential remote sensing
* Parallelable for multi-phase operation
* Start-up output voltage selectable in 50mV steps from 0.40V to 3.35V through VSETx pins and I2C adjust

Applications

* Aircraft electrical power
* Defense radio
* Seeker front end
* Radar
* Rail transport VIN 2.7V
* 6V CIN CIN TPSM8287Axx VIN VOUT VIN VOUT COUT CLOAD VOUT MODE/ VOSNS SYNC REN GOSNS EN VSET1 RVSET1 VSET2 COMP RVSET2 VSET3 RVSET3
