TPSM84205

TO-220 Power Module

TPSM84205 Features

* 1 Complete Integrated Power Solution

* 3-Pin TO-220 Footprint

* Efficiencies up to 95%

* Fixed Output Voltage Options: 3.3 V, 5 V, and 12 V

* 400-kHz Switching Frequency

* Advanced Eco-modeā„¢ Pulse Skip

* Pre-bias Output Start-up

* Over

TPSM84205 General Description

The TPSM842xx power module is an easy-to-use integrated power solution that combines a 1.5-A DC/DC converter with power MOSFETs, an inductor, and passives into a 3-pin, through-hole package. This total power solution requires adding only input and output capacitors and eliminates the loop compensati.

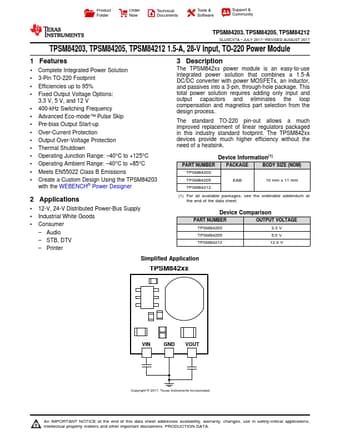

TPSM84205 Datasheet (737.87 KB)

Preview of TPSM84205 PDF

Datasheet Details

Part number:

TPSM84205

Manufacturer:

Texas Instruments ↗

File Size:

737.87 KB

Description:

To-220 power module.
