TPSM84212, TPSM84203 TO-220 Power Module

TPSM84212 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community TPSM84203, TPSM84205, TPSM84212 SLUSCV7A * JULY 2017 The TPSM842xx power module is an easy-to-use integrated power solution that combines a 1.

TPSM84212 Features

* 1 Complete Integrated Power Solution
* 3-Pin TO-220 Footprint
* Efficiencies up to 95%
* Fixed Output Voltage Options: 3.3 V, 5 V, and 12 V
* 400-kHz Switching Frequency
* Advanced Eco-mode™ Pulse Skip
* Pre-bias Output Start-up
* Over

TPSM84212 Applications

* 12-V, 24-V Distributed Power-Bus Supply
* Industrial White Goods
* Consumer
* Audio
* STB, DTV

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPSM84212, TPSM84203. Please refer to the document for exact specifications by model.

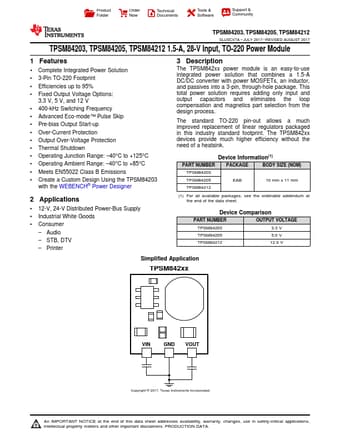

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPSM84212, TPSM84203
Manufacturer
Texas Instruments ↗
File Size
737.87 KB
Datasheet
TPSM84203-etcTI.pdf
Description
TO-220 Power Module
Note
This datasheet PDF includes multiple part numbers: TPSM84212, TPSM84203.
Please refer to the document for exact specifications by model.
