UC1707-SP - Dual-Channel Power Driver

UC1707-SP Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UC1707-SP SLUSAG0A * MARCH 2011 * REVISED MA.
The UC1707-SP power driver is made with a highspeed Schottky process to interface between lowlevel control functions and high-power switching devices.

UC1707-SP Features

* 1 Rad-Tolerant: 50 kRad (Si) for 59628761903VEA, 5962-8761903VFA (1)
* QML-V Qualified, SMD (5962-8761901VEA, 5962-8761903VEA, 5962-8761903VFA, 5962-8761901V2A)
* Two Independent Drivers
* 1.5-A Totem Pole Outputs
* Inverting and Non-Inverting Inputs

UC1707-SP Applications

* Switch Mode Power Supply
* DC-DC Converter
* Pulse Transformer Driver INPUT A N. I. 15 INPUT A INVERT 16 8 +Vc 6 OUTPUT A INPUT B N. I. INPUT B INVERT 2 1 +VIN 14 5V REG THERMAL SHUTDOWN 130 mV ANALOG STOP NON-INV. 10 ANALOG STOP INV. 9 + S LATCH R 11 OUTPUT

📥 Download Datasheet

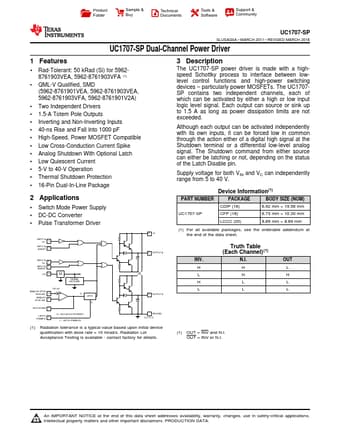

Preview of UC1707-SP PDF
