UC1710 Datasheet - Unitrode

UC1710 High Current FET Driver

The UC1710 family of FET drivers is made with a high-speed Schottky process to interface between low-level control functions and very high-power switching devices-particularly power MOSFET’s. These devices accept low-current digital inputs to activate a high-current, totem pole output which can sour.

UC1710 Features

* Totem Pole Output with 6A Source/Sink Drive

* 3ns Delay

* 20ns Rise and Fall Time into 2.2nF

* 8ns Rise and Fall Time into 30nF

* 4.7V to 18V Operation

* Inverting and Non-Inverting Outputs

* Under-Voltage Lockout with Hysteresis

* Th

UC1710 Datasheet (177.32 KB)

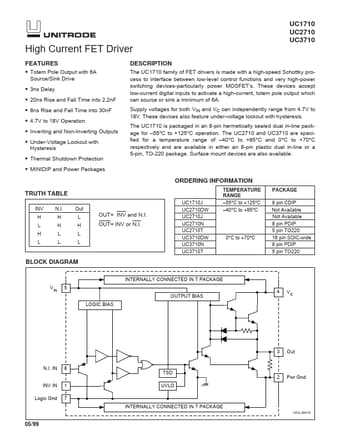

UC1710 Datasheet Preview — Preview of UC1710 PDF

Datasheet Details

Part number:

UC1710

Manufacturer:

Unitrode

File Size:

177.32 KB

Description:

High current fet driver.
