UC1526A - Regulating Pulse Width Modulator

UC1526A Description

Regulating Pulse Width Modulator UC1526A UC2526A UC3526A .
The UC1526A Series are improved-performance pulse-width modulator circuits intended for direct replacement of equivalent non- “A” versions in all appl.

UC1526A Features

* Reduced Supply Current
* Oscillator Frequency to 600kHz
* Precision Band-Gap Reference
* 7 to 35V Operation
* Dual 200mA Source/Sink Outputs
* Minimum Output Cross-Conduction
* Double-Pulse Suppression Logic
* Under-Voltage Lockout

UC1526A Applications

* Higher frequency operation has been enhanced by several significant improvements including: a more accurate oscillator with less minimum dead time, reduced circuit delays (particularly in current limiting), and an improved output stage with negligible cross-conduction current. Additional improvemen

📥 Download Datasheet

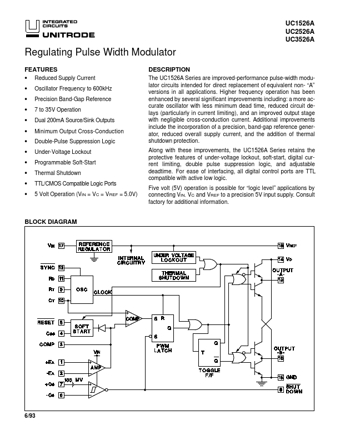

Preview of UC1526A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UC1526A
Manufacturer
Unitrode
File Size
598.04 KB
Datasheet
UC1526A-Unitrode.pdf
Description
Regulating Pulse Width Modulator
