UC1524

ADVANCED REGULATING PULSE WIDTH MODULATORS

UC1524 Features

* Complete PWM Power Control Circuitry

* Uncommitted Outputs for Single-Ended or Push-Pull Applications

* Low Standby Current . . . 8 mA Typical

* Interchangeable With SG1524, SG2524 and SG3524, Respectively DESCRIPTION The UC1524, UC2524 and UC3524 incorporate on a

UC1524 General Description

The UC1524, UC2524 and UC3524 incorporate on a single monolithic chip all the functions required for the construction of regulating power supplies, inverters or switching regulators. They can also be used as the control element for high-power-output applications. The UC1524 family was designed for s.

UC1524 Datasheet (1.72 MB)

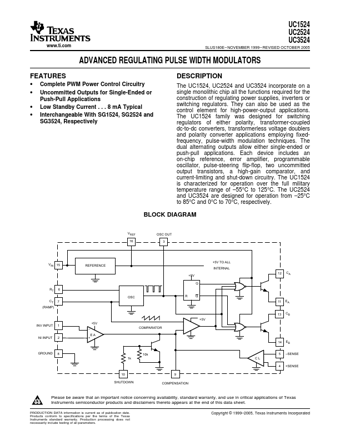

Preview of UC1524 PDF

Datasheet Details

Part number:

UC1524

Manufacturer:

Texas Instruments ↗

File Size:

1.72 MB

Description:

Advanced regulating pulse width modulators.
