UC1843 - Current-Mode PWM Controllers

Product Overview

Texas Instruments

📥 Download Datasheet

UC1843 Current-Mode PWM Controllers by Texas Instruments - Datasheet Preview — Datasheet preview – UC1843

Datasheet Details

Part number	UC1843
Manufacturer	Texas Instruments
File Size	3.96 MB
Description	Current-Mode PWM Controllers
Datasheet	UC1843 Datasheet
Note	This datasheet PDF includes multiple part numbers: UC1843, UC1842. Please refer to the document for exact specifications by model.

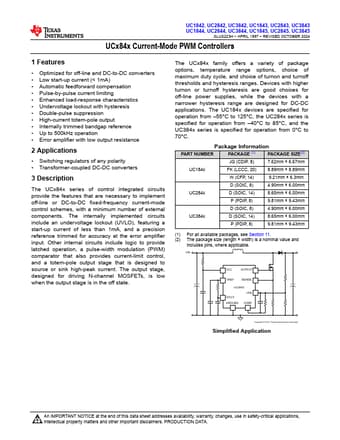

Additional preview pages of the UC1843 datasheet.

Product details

Description

The UCx84x series of control integrated circuits provide the

Features

Optimized for off-line and DC-to-DC converters.
Low start-up current (< 1mA).
Automatic feedforward compensation.
Pulse-by-pulse current limiting.
Enhanced load-response characteristics.
Undervoltage lockout with hysteresis.
Double-pulse suppression.
High-current totem-pole output.
Internally trimmed bandgap reference.
Up to 500kHz operation.
Error amplifier with low output resistance 2 Applicatio.
