UC3625

Brushless DC Motor Controller

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Texas Instruments UC3625DW IC MOTOR DRIVER 10V-18V 28SOIC DigiKey 425 1000 units
$9.17

UC3625 Datasheet (870.40 KB)

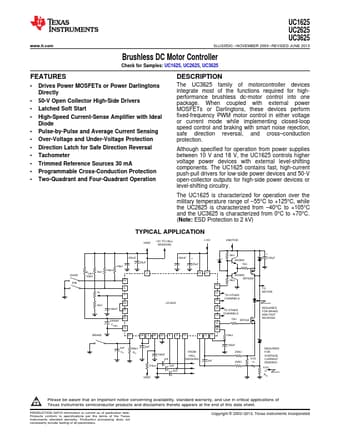

Preview of UC3625 PDF Datasheet

Datasheet Details

Part number:

UC3625

Manufacturer:

Texas Instruments ↗

File Size:

870.40 KB

Description:

Brushless dc motor controller

UC3625 Features

* 1

* Drives Power MOSFETs or Power Darlingtons Directly

* 50-V Open Collector High-Side Drivers

* Latched Soft Start

* High-Speed Current-Sense Amplifier with Ideal Diode

* Pulse-by-Pulse and Average Current Sensing

* Over-Voltage and Under-Voltage Prot

UC3625 General Description

The UC3625 family of motorcontroller devices integrate most of the functions required for highperformance brushless dc-motor control into one package. When coupled with external power MOSFETs or Darlingtons, these devices perform fixed-frequency PWM motor control in either voltage or current mode wh.
