UC3525A - Regulating Pulse Width Modulators

Product Overview

Texas Instruments

Datasheet Details

Part number	UC3525A
Manufacturer	Texas Instruments
File Size	962.08 KB
Description	Regulating Pulse Width Modulators
Datasheet	UC3525A Datasheet

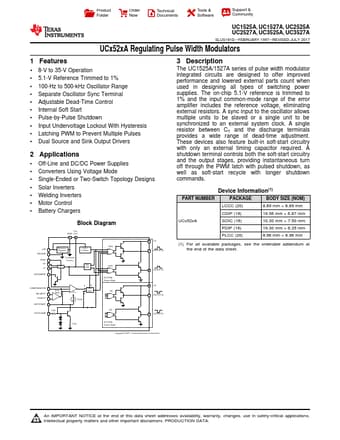

Additional preview pages of the UC3525A datasheet.

Product details

Description

The UC1525A/1527A series of pulse width modulator integrated circuits are designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies.

Features

1 8-V to 35-V Operation.
5.1-V Reference Trimmed to 1%.
100-Hz to 500-kHz Oscillator Range.
Separate Oscillator Sync Terminal.
Adjustable Dead-Time Control.
Internal Soft Start.
Pulse-by-Pulse Shutdown.
Input Undervoltage Lockout With Hysteresis.
Latching PWM to Prevent Multiple Pulses.
Dual Source and Sink Output Drivers 2.
