UC3611

Quad Schottky Diode Array

Texas Instruments

UC3611 Features

* D Matched, Four-Diode Monolithic Array D High Peak Current D Low-Cost MINIDIP Package D Low-Forward Voltage D Parallelable for Lower VF or Higher IF D Fast Recovery Time D Military Temperature Range Available DESCRIPTION This four-diode array is designed for general purpose use as individual diodes

UC3611 General Description

This four-diode array is designed for general purpose use as individual diodes or as a high-speed, high-current bridge. It is particularly useful on the outputs of high-speed power MOSFET drivers where Schottky diodes are needed to clamp any negative excursions caused by ringing on the driven line.T.

UC3611 Datasheet (162.48 KB)

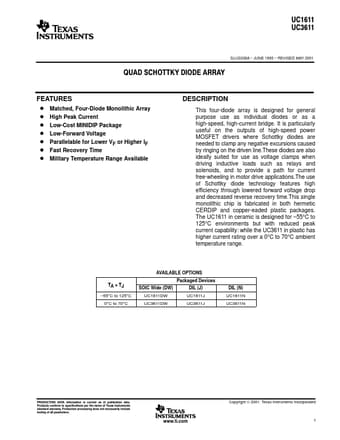

UC3611 Datasheet Preview — Preview of UC3611 PDF

Datasheet Details

Part number:

UC3611

Manufacturer:

Texas Instruments ↗

File Size:

162.48 KB

Description:

Quad schottky diode array.
