UC3500

HIGH EFFICIENCY VFM CONTROLLED STEP-UP DC/DC CONVERTER

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor PEPPERL+FUCHS GmbH UC3500-30GM70S-UE2R2-V15 ULTRASONIC DigiKey 0 1 units
$762.14

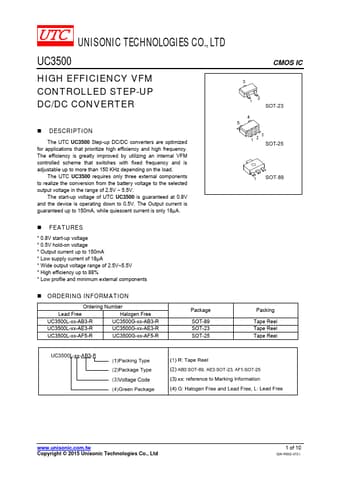

UC3500 Datasheet (414.10 KB)

Preview of UC3500 PDF

Datasheet Details

Part number:

UC3500

Manufacturer:

UTC

File Size:

414.10 KB

Description:

High efficiency vfm controlled step-up dc/dc converter.

UC3500 Features

* 0.8V start-up voltage

* 0.5V hold-on voltage

* Output current up to 150mA

* Low supply current of 18μA

* Wide output voltage range of 2.5V~5.5V

* High efficiency up to 88%

* Low profile and minimum external components

* ORDERING INFORMATION Ordering Number Lead F

UC3500 General Description

The UTC UC3500 Step-up DC/DC converters are optimized for applications that prioritize high efficiency and high frequency. The efficiency is greatly improved by utilizing an internal VFM controlled scheme that switches with fixed frequency and is adjustable up to more than 150 KHz depending on the l.
