UC3526 Datasheet, Modulator, Unitrode

UC3526 Features

  • Modulator
  • 8 To 35V Operation
  • 5V Reference Trimmed To ±1%
  • 1Hz To 400kHz Oscillator Range
  • Dual 100mA Source/Sink Outputs
  • Digital Current Limiting <

PDF File Details

Part number:

UC3526

Manufacturer:

Unitrode

File Size:

608.43kb

Download:

📄 Datasheet

Description:

Regulating pulse width modulator. The UC1526 is a high performance monolithic pulse width modulator circuit designed for fixed-frequency switching regulators and other

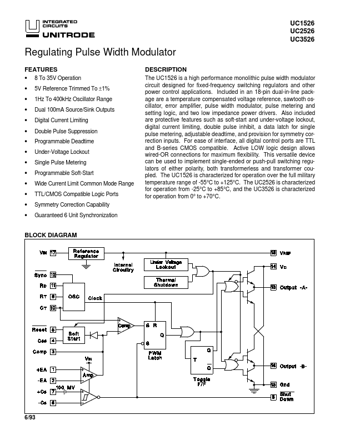

Datasheet Preview: UC3526 📥 Download PDF (608.43kb)
Page 2 of UC3526 Page 3 of UC3526

UC3526 Application

  • Applications Included in an 18-pin dual-in-line package are a temperature compensated voltage reference, sawtooth oscillator, error amplifier, puls
