UC3527B, UC3525B - Regulating Pulse Width Modulators

UC3527B Description

UC3527B Not Recommended For New Designs Regulating Pulse Width Modulators application INFO available UC1525B UC1527B UC2525B UC2527B UC3525B UC3527.
The UC1525B/1527B series of pulse width modulator integrated circuits are designed to offer improved performance and lowered external parts count when.

UC3527B Features

* 8 to 35V Operation
* 5.1V Buried Zener Reference Trimmed to ±0.75%
* 100Hz to 500kHz Oscillator Range
* Separate Oscillator Sync Terminal
* Adjustable Deadtime Control
* Internal Soft-Start
* Pulse-by-Pulse Shutdown
* Input Undervolta

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UC3527B, UC3525B. Please refer to the document for exact specifications by model.

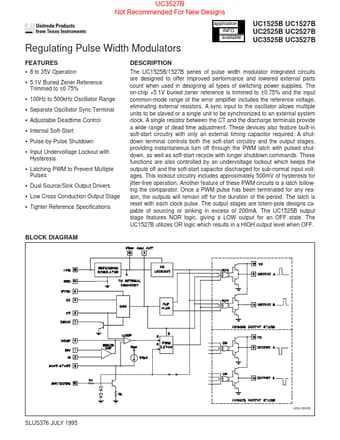

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UC3527B, UC3525B
Manufacturer
Unitrode
File Size
2.09 MB
Datasheet
UC3525B-Unitrode.pdf
Description
Regulating Pulse Width Modulators
Note
This datasheet PDF includes multiple part numbers: UC3527B, UC3525B.
Please refer to the document for exact specifications by model.
