UC3501 - LOW COST FLASHLIGHT LED DRIVE

UC3501 Description

UNISONIC TECHNOLOGIES CO., LTD UC3501 Preliminary CMOS IC HIGH EFFICIENT, LOW COST FLASHLIGHT LED DRIVE * .
UTC UC3501 is Flashlight ASIC chip, Using LSI technology, Specifically designed for single dry battery, Plus 1 of inductors, May constitute a drive c.

UC3501 Features

* High efficiency:85%~90%
* Low cost
* Simply add-ins one inductor
* ORDERING INFORMATION Package TO-92 TO-92 Pin Assignment 1 2 3 O D G O D G Packing Tape Box Bulk Order Number Lead Free Halogen Free UC3501L-T92-B UC3501G-T92-B UC3501L-T92-K UC3501G-T92-K Note: Pin Assignment: G

📥 Download Datasheet

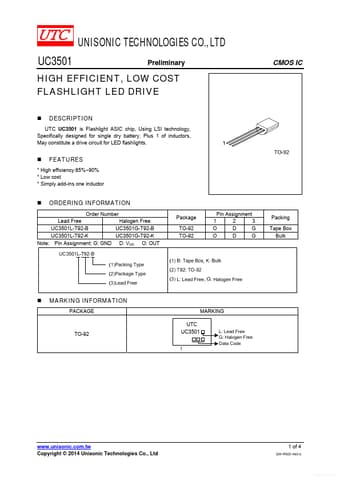

Preview of UC3501 PDF
