UC32062 - SYNCHRONOUS STEP-DOWN DC/DC CONVERTER

This page provides the datasheet information for the UC32062, a member of the UC32061 SYNCHRONOUS STEP-DOWN DC/DC CONVERTER family.

Datasheet Summary

Description

The UTC UC3206X is a high efficiency synchronous, step-down DC/DC converter.

Its input voltage range is from 2V to 6V, and Output voltage is internally set in a range from 0.8V to 4.0V in increments of 50mV (accuracy: ±2.0%).

Features

  • >.
  • Input voltage: 2.0V~6.0V.
  • Output voltage: 0.8V~4.0V (+2.0%).
  • P-ch ON resistance: 0.42Ω.
  • N-ch ON resistance: 0.52Ω.
  • Output current: 600mA.
  • Oscillation frequency: 3.0MHz (+15%).
  • Maximum duty cycle: 100%.
  • High efficiency : 92% (TYP. ).
  • High speed soft-start circuit and Current limiter circuit built-in.
  • CL high speed auto discharge.
  • Low ESR ceramic capacitor compatible.

📥 Download Datasheet

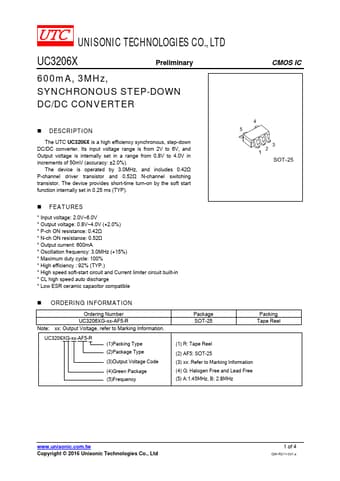

Datasheet preview – UC32062

Datasheet Details

Part number UC32062
Manufacturer UTC
File Size 204.53 KB
Description SYNCHRONOUS STEP-DOWN DC/DC CONVERTER
Datasheet download datasheet UC32062 Datasheet
Additional preview pages of the UC32062 datasheet.

📁 Similar Datasheet

  • UC3001 - Printed Circuit Mount (Young)
  • UC3176 - Full Bridge Power Amplifier (Unitrode)
  • UC3177 - Full Bridge Power Amplifier (Unitrode)
  • UC33063A - DC TO DC CONVERTER CONTROLLER (Unisonic Technologies)
  • UC3380 - PWM STEP UP DC-DC CONTROLLER (Unisonic Technologies)
  • UC3383 - STEP-UP DC/DC CONVERTERS (Unisonic Technologies)
  • UC34 - Chip Mica Capacitor 4.5x3.2 size (Soshin)
  • UC3524 - ADVANCED REGULATING PULSE WIDTH MODULATORS (Texas Instruments)
  • UC3524A - ADVANCED REGULATING PULSE WIDTH MODULATORS (Unitrode)
  • UC3525A - SMPS Controller (Fairchild Semiconductor)
Other Datasheets by UTC
  • UC32061 - SYNCHRONOUS STEP-DOWN DC/DC CONVERTER
  • UC34363 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER
  • UC34463 - 2A PWM BUCK SWITCHING REGULATOR
  • UC3500 - HIGH EFFICIENCY VFM CONTROLLED STEP-UP DC/DC CONVERTER
  • UC3501 - LOW COST FLASHLIGHT LED DRIVE
  • UC3535 - DC-DC CONTROLLER
  • UC3550 - PWM/PFM SWITCHABLE STEP-UP DC-DC CONTROLLER
  • UC3555 - 500MA HIGH EFFICIENCY BOOST REGULATOR

Full PDF Text Transcription

Click to expand full text
UNISONIC TECHNOLOGIES CO., LTD UC3206X Preliminary 600mA, 3MHz, SYNCHRONOUS STEP-DOWN DC/DC CONVERTER CMOS IC  DESCRIPTION The UTC UC3206X is a high efficiency synchronous, step-down DC/DC converter. Its input voltage range is from 2V to 6V, and Output voltage is internally set in a range from 0.8V to 4.0V in increments of 50mV (accuracy: ±2.0%). The device is operated by 3.0MHz, and includes 0.42Ω P-channel driver transistor and 0.52Ω N-channel switching transistor. The device provides short-time turn-on by the soft start function internally set in 0.25 ms (TYP).  FEATURES * Input voltage: 2.0V~6.0V * Output voltage: 0.8V~4.0V (+2.0%) * P-ch ON resistance: 0.42Ω * N-ch ON resistance: 0.52Ω * Output current: 600mA * Oscillation frequency: 3.
