UC3176

Full Bridge Power Amplifier

UC3176 Features

* Dual Power Operational Amplifiers

* ±2A Output Current Guaranteed

* Precision Current Sense Amplifier

* Two Supply Monitoring Inputs

* Parking Function and Under-Voltage Lockout

* Safe Operating Area Protection

* 3V to 35V Operation DESCRIPT

UC3176 General Description

The UC3176/7 family of full bridge power amplifiers is rated for a continuous output current of 2A. Intended for use in demanding servo applications such as disk head positioning, the onboard current sense amplifier can be used to obtain precision control of load current, or where voltage mode drive.

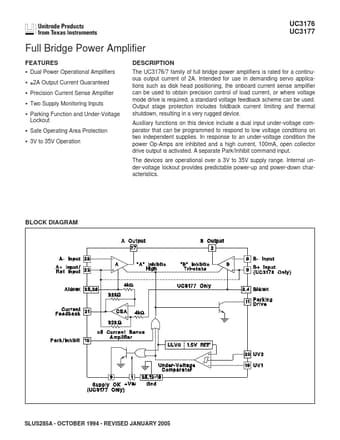

UC3176 Datasheet (272.25 KB)

Preview of UC3176 PDF

Datasheet Details

Part number:

UC3176

Manufacturer:

Unitrode

File Size:

272.25 KB

Description:

Full bridge power amplifier.
