UC34363

CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER

UC34363 Features

* CV/CC linear charge

* 3A maximum charge current

* PWM control Mode

* Available charge current

* Over Voltage protect ,Over Current Protect

* Enable Control function

* Very Low Power Dissipation in Standby Mode

* ORDERING INFORMATION Ordering Number Lead Free Ha

UC34363 General Description

The UTC UC34363 is a switch controller for constant voltage, constant current (CV/CC) application. The device could be used for battery charge. UTC UC34363 is used of SOP-8 packages. Additionally the UTC UC34363 intergrated a internal compensation capacitor, so that the application is simplicial. .

UC34363 Datasheet (161.22 KB)

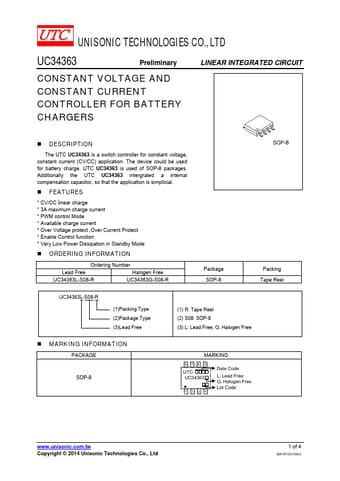

Preview of UC34363 PDF

Datasheet Details

Part number:

UC34363

Manufacturer:

UTC

File Size:

161.22 KB

Description:

Constant voltage and constant current controller.
UNISONIC TECHNOLOGIES CO., LTD UC34363 Preliminary LINEAR INTEGRATED CIRCUIT CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER FOR BATTERY CHARGERS.
