UC33063A - DC TO DC CONVERTER CONTROLLER

Datasheet Summary

Description

The UTC UC33063A is a monolithic regulator subsystem, intended for use as DC to DC converter.

This device contains a temperature compensated band gap reference, a duty-cycle control oscillator, driver and high current output switch.

Features

  • S.
  • Operation from 3.0V to 40V.
  • Short Circuit Current Limiting.
  • Low Standby Current.
  • Output Switch Current of 1.5A without External Transistors.
  • Frequency of Operation from 100Hz to 100kHz.
  • Step-up, Step-down or Inverting Switch Regulators.

📥 Download Datasheet

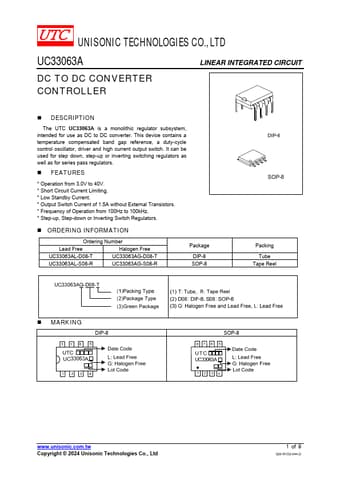

Datasheet preview – UC33063A
