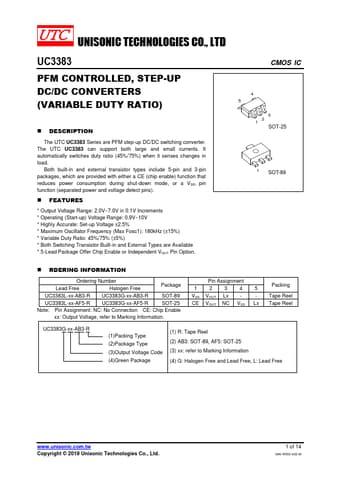

UC3383 Datasheet Preview — Preview of UC3383 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: UC3383
Manufacturer: Unisonic Technologies
File Size: 625.21 KB
Datasheet: UC3383-UnisonicTechnologies.pdf
Description: STEP-UP DC/DC CONVERTERS

UC3383 Product details

Description

The UTC UC3383 Series are PFM step-up DC/DC switching converter.

Features

S.
Output Voltage Range: 2.0V~7.0V in 0.1V Increments.
Operating (Start-up) Voltage Range: 0.9V~10V.
Highly Accurate: Set-up Voltage ±2.5%.
Maximum Oscillator Frequency (Max Fosc1): 180kHz (±15%).
Variable Duty Ratio: 45%/75% (±5%).
Both Switching Transistor Built-in and External Types are Available.
5-Lead Package Offer Chip Enable or Independent VOUT Pin Option. CMOS IC 4 5 3 12 SOT-25 1 SOT-89.
