UC3552 - PWM DC-DC CONVERTER

UC3552 Description

UNISONIC TECHNOLOGIES CO., LTD UC3552 PWM DC-DC CONVERTER WITH INTERNAL SWITCH AND SOFT-START * .
The UTC UC3552 is a step-up PWM DC-DC converter with a internal switch which is 1.

UC3552 Features

* 1.6A, 0.23Ω, internal switch
* High efficiency: 90%
* Adjustable output: VDD to 12V
* Adjustable frequency: 640kHz or 1.3MHz
* Wide input range: +2.6V ~ +5.5V
* Low shutdown current: 0.1μA
* Programmable soft-start
* ORDERING INFORMATION Ordering Number UC3552G-S08

📥 Download Datasheet

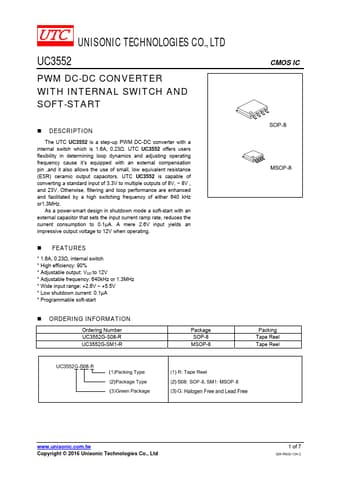

Preview of UC3552 PDF
