UCC21220 - Dual-Channel Basic and Functional Isolated Gate Driver

Datasheet Summary

Description

The UCC21220 and UCC21220A devices are basic and functional isolated dual-channel gate drivers with 4A peak-source and 6A peak-sink current.

Features

  • Supports basic and functional isolation.
  • CMTI greater than 100V/ns.
  • 4A peak source, 6A peak sink output.
  • Switching parameters:.
  • 40ns maximum propagation delay.
  • 5ns maximum delay matching.
  • 5.5ns maximum pulse-width distortion.
  • 35µs maximum VDD power-up delay.
  • Up to 18V VDD output drive supply.
  • 5V and 8V VDD UVLO Options.
  • Operating temperature range (TA).
  • 40°C to 125°C.
  • Narrow body.

📥 Download Datasheet

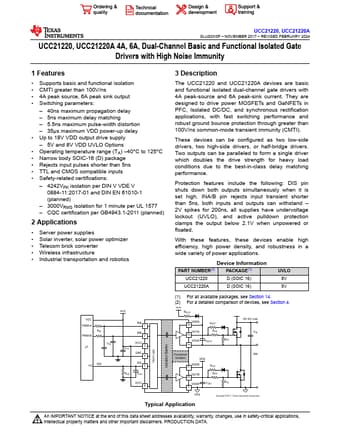

Datasheet preview – UCC21220

Datasheet Details

Part number UCC21220
Manufacturer Texas Instruments
File Size 1.53 MB
Description Dual-Channel Basic and Functional Isolated Gate Driver
Datasheet download datasheet UCC21220 Datasheet
Additional preview pages of the UCC21220 datasheet.

📁 Similar Datasheet

  • UCC2105 - CC/CV MODE STEP DOWN SWITCHING REGULATOR (UTC)
  • UCC25701 - Advanced Voltage Mode Pulse Width Modulator (Unitrode)
  • UCC25702 - Advanced Voltage Mode Pulse Width Modulator (Unitrode)
  • UCC2581 - Micropower Voltage Mode PWM (Unitrode)
  • UCC2583 - (UCC1583 - UCC3583) Switch Mode Secondary Side Post Regulator (Unitrode)
  • UCC2750 - Source Ringer Controller (Unitrode)
  • UCC27519DBVR - 4A Single-Channel Non-Inverting Gate Driver (UMW)
  • UCC2807-1 - Programmable Maximum Duty Cycle PWM Controller (Unitrode)
  • UCC2807-2 - Programmable Maximum Duty Cycle PWM Controller (Unitrode)
  • UCC2807-3 - Programmable Maximum Duty Cycle PWM Controller (Unitrode)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
UCC21220, UCC21220A SLUSCK0F – NOVEMBER 2017 – REVISED FEBRUARY 2024 UCC21220, UCC21220A 4A, 6A, Dual-Channel Basic and Functional Isolated Gate Drivers with High Noise Immunity 1 Features • Supports basic and functional isolation • CMTI greater than 100V/ns • 4A peak source, 6A peak sink output • Switching parameters: – 40ns maximum propagation delay – 5ns maximum delay matching – 5.
