UCC2805, UCC1800 Low-Power BiCMOS Current-Mode PWM Controllers

UCC2805 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC1800, UCC1801, UCC1802, UCC1803, UCC1804, UCC1805 UCC2800.
The UCCx80x family of high-speed, low-power integrated circuits contain all of the control and drive components required for off-line and DC-to-DC fix.

UCC2805 Features

* 1 100-μA Typical Starting Supply Current
* 500-μA Typical Operating Supply Current
* Operation up to 1 MHz
* Internal Soft Start
* Internal Fault Soft Start
* Internal Leading-Edge Blanking of the Current Sense Signal
* 1-A Totem-Pole Output

UCC2805 Applications

* Switch Mode Power Supplies (SMPS)
* DC-to-DC Converters
* Power Modules
* Industrial PSU

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UCC2805, UCC1800. Please refer to the document for exact specifications by model.

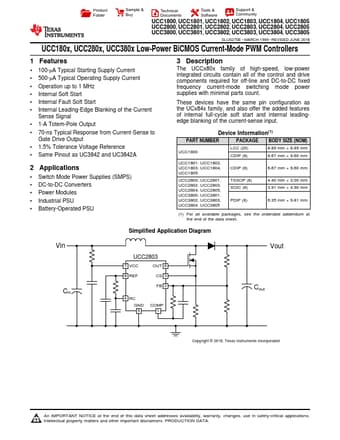

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UCC2805, UCC1800
Manufacturer
Texas Instruments ↗
File Size
3.02 MB
Datasheet
UCC1800-etcTI.pdf
Description
Low-Power BiCMOS Current-Mode PWM Controllers
Note
This datasheet PDF includes multiple part numbers: UCC2805, UCC1800.
Please refer to the document for exact specifications by model.
