UCC2805-EP

LOW-POWER BICMOS CURRENT-MODE PWM

UCC2805-EP Datasheet (955.27 KB)

Preview of UCC2805-EP PDF Datasheet

Datasheet Details

Part number:

UCC2805-EP

Manufacturer:

Texas Instruments ↗

File Size:

955.27 KB

Description:

Low-power bicmos current-mode pwm

UCC2805-EP Features

* of internal full-cycle soft start and internal leading-edge blanking of the current-sense input. The UCC2800/1/2/3/4/5 family offers choice of maximum duty cycle and critical voltage levels. Lower reference parts such as the UCC2803 and UCC2805 fit best into battery operated systems, while the highe

UCC2805-EP General Description

The UCC2800/1/2/3/4/5 family of high-speed, low-power integrated circuits contain all of the control and drive components required for off-line and dc-to-dc fixed frequency current-mode switching power supplies with minimal parts count. These devices have the same pin configuration as the UC2842/3/4.

📁 Related Datasheet

UCC2805-Q1 - PWM (Texas Instruments)
ą UCC2800/2801/2802/2803/2804/2805ĆQ1 LOWĆPOWER BICMOS CURRENTĆMODE PWM D Qualified for Automotive Applications D ESD Protection Exceeds 200 V Using .

UCC2805 - Low-Power BiCMOS Current-Mode PWM Controllers (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC1800, UCC1801, UCC1802, UCC1803, UCC1804, UCC1805 UCC2800.

UCC28050 - Transition Mode PFC Controller (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design UCC28050, UCC28051, UCC38050, UCC38051 SLU.

UCC28051 - Transition Mode PFC Controller (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design UCC28050, UCC28051, UCC38050, UCC38051 SLU.

UCC28056 - 6-Pin Single-Phase Transition-Mode PFC Controller (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community UCC28056 SLUSD37D – OCTOBER 2017 – REVISED JULY 2019 UCC28056 6.

UCC2800 - Low-Power BiCMOS Current-Mode PWM Controllers (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC1800, UCC1801, UCC1802, UCC1803, UCC1804, UCC1805 UCC2800.

TAGS

UCC2805-EP LOW-POWER BICMOS CURRENT-MODE PWM Texas Instruments

Image Gallery

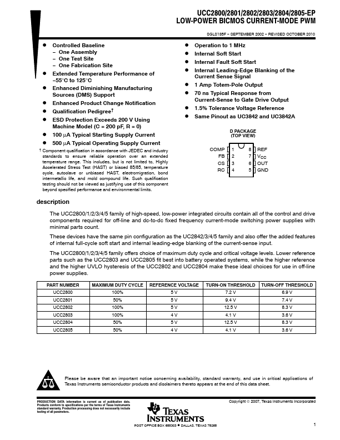

UCC2805-EP Datasheet Preview Page 2 UCC2805-EP Datasheet Preview Page 3
