ULN2002AN Datasheet, Arrays, Texas Instruments

ULN2002AN Features

• Arrays
• 1 500-mA-Rated Collector Current (Single Output)
• High-Voltage Outputs: 50 V
• Output Clamp Diodes
• Inputs Compatible With Various Types of Logic

PDF File Details

Part number:

ULN2002AN

Manufacturer:

Texas Instruments ↗

File Size:

1.51MB

Download:

📄 Datasheet

Description:

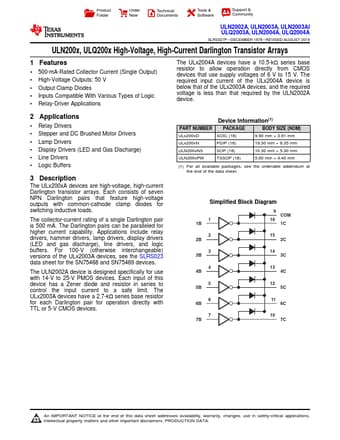

High-current darlington transistor arrays. The ULx200xA devices are high-voltage, high-current Darlington transistor arrays. Each consists of seven NPN Darlington pairs that fe

ULN2002AN Application

• Applications 2 Applications
• Relay Drivers
• Stepper and DC Brushed Motor Drivers
• Lamp Drivers
• Display Drivers
