ULN2003LVDR, ULN2003LV - 7-Channel Relay and Inductive Load Sink Driver

ULN2003LVDR Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design ULN2003LV SLRS059B * APRIL 2012 The ULN2003LV is a low-voltage and low power upgrade of TI’s popular ULN2003 family of 7-channel Darlington transistor array.

ULN2003LVDR Features

* 1 7-Channel High Current Sink Drivers
* Supports up to 8V Ouput Pullup Voltage
* Supports a Wide Range of 3V-to-5V Relay and Inductive Coils
* Low Output VOL of 0.4V (Typical) With
* 100mA (Typical) Current Sink per Channel at 3.3V Logic Input(1)
* 14

ULN2003LVDR Applications

* Relay and Inductive Load Driver in Various Telecom, Consumer, and Industrial Applications
* Lamp and LED Displays

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ULN2003LVDR, ULN2003LV. Please refer to the document for exact specifications by model.

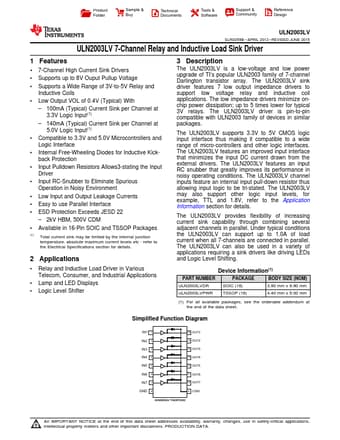

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ULN2003LVDR, ULN2003LV
Manufacturer
Texas Instruments ↗
File Size
1.64 MB
Datasheet
ULN2003LV-etcTI.pdf
Description
7-Channel Relay and Inductive Load Sink Driver
Note
This datasheet PDF includes multiple part numbers: ULN2003LVDR, ULN2003LV.
Please refer to the document for exact specifications by model.
