VSP5611

CCD/CMOS Sensor Analog Front-End

VSP5611 Features

* 1

* 23 Four-Channel CCD/CMOS Signal: 2-Channel, 3-Channel, and 4-Channel Selectable

* Power Supply: 3.3 V Only, Typ (Built-in LDO, 3.3 V to 1.8 V)

* Maximum Conversion Rate:

* VSP5610: 35 MSPS

* VSP5611: 50 MSPS

* VSP5612: 70 MSPS

* 16-Bit Resol

VSP5611 General Description

The VSP5610/11/12 are high-speed, high-performance, 16-bit analog-to-digital-converters (ADCs) that have four independent sampling circuit channels for multi-output charge-coupled device (CCD) and complementary metal oxide semiconductor (CMOS) line sensors. Pixel data from the sensor are s.

VSP5611 Datasheet (761.97 KB)

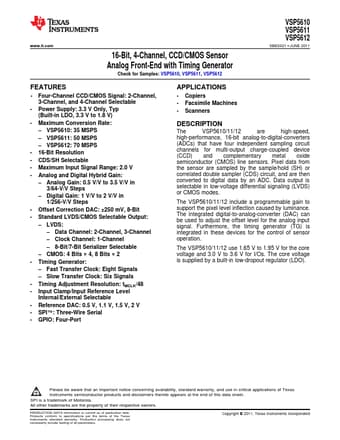

Preview of VSP5611 PDF

Datasheet Details

Part number:

VSP5611

Manufacturer:

Texas Instruments ↗

File Size:

761.97 KB

Description:

Ccd/cmos sensor analog front-end.
www.ti.com 16-Bit, 4-Channel, CCD/CMOS Sensor Analog Front-End with Timing Generator Check for Samples: VSP5610, VSP5611, VSP5612 VSP5610 VSP5611 VS.
