VSP003N06HS

N-Channel Advanced Power MOSFET

VSP003N06HS Features

* N-Channel,10V Logic Level Control

* Enhancement mode

* Very low on-resistance

* Fast Switching

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VSP003N06HS 60V/120A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10V ID 60 V 4.4 mΩ 120 A PDFN5x6 Pa

VSP003N06HS Datasheet (368.96 KB)

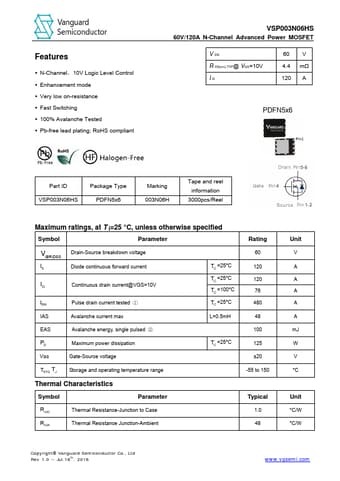

Preview of VSP003N06HS PDF

Datasheet Details

Part number:

VSP003N06HS

Manufacturer:

Vanguard Semiconductor

File Size:

368.96 KB

Description:

N-channel advanced power mosfet.
