VSP003N06MS-G - N-Channel Advanced Power MOSFET

Product Overview

Vanguard Semiconductor

Part number	VSP003N06MS-G
Manufacturer	Vanguard Semiconductor
File Size	668.63 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VSP003N06MS-G Datasheet

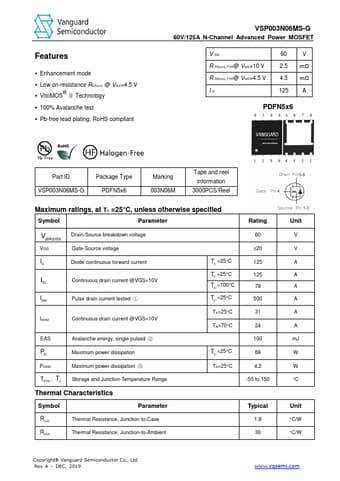

Additional preview pages of the VSP003N06MS-G datasheet.

Enhancement mode.
Low on-resistance RDS(on) @ VGS=4.5 V.
VitoMOS® Ⅱ Technology.
100% Avalanche test.
Pb-free lead plating; RoHS compliant VSP003N06MS-G 60V/125A N-Channel Advanced Power MOSFET V DS R @ DS(on),TYP VGS=10 V R @ DS(on),TYP VGS=4.5 V ID 60 V 2.5 mΩ 4.3 mΩ 125 A PDFN5x6 Part ID VSP003N06MS-G Package Type PDFN5x6 Marking 003N06M Tape and reel information 3000PCS/Reel Maximum ratings, at TA =25°C, unless otherwise specified Symbol Parameter V(B.
