D8213 Datasheet - iDESYN

Dual High-Efficiency PWM Step-Down DC-DC Converter

D8213 Features

* 2.6V to 5.5V Input Range Adjustable Output Voltage 1.2A Output Current per Channel 95% Efficiency No Schottky Diode Required A Quiescent Current per Channel 1.5MHz Fixed-Frequency PWM Operation Small TDFN-12 and TDFN-10 Package RoHS Compliant and Green internal r eference voltage w ith 3% accurac y

D8213 General Description

The i D8213 is a dual high efficiency Pul se Width Modulated ( PWM) step-down DC-DC c onverter. I t i s capable o f delivering 1. 2A output curr ent o ver a w ide input v oltage range f rom 2.6V t o 5.5V, t he i D8213 is ideally s uited for port able electronic de vices that are powered f rom 1-cell.

D8213 Datasheet (383.13 KB)

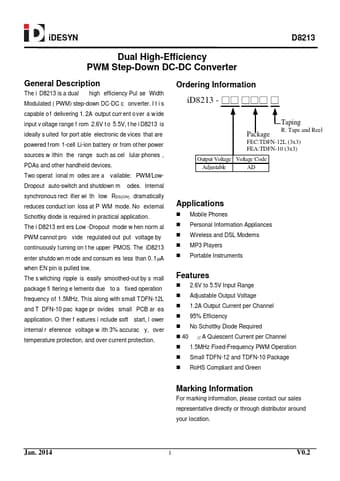

D8213 Datasheet Preview — Preview of D8213 PDF

Datasheet Details

Part number:

D8213

Manufacturer:

iDESYN

File Size:

383.13 KB

Description:

Dual high-efficiency pwm step-down dc-dc converter.
