M4644 Datasheet - iModule

M4644, Qual 4A Step-down DC-DC Power SoC

M4644 16V Input, Qual 4A Step-down DC-DC Power SoC with Integrated Inductor .
The M4644 is a qual 4A step-down switching mode Power SoC (System on Chip) with integrated power MosFETs, inductor and input decoupling capacitor in B.

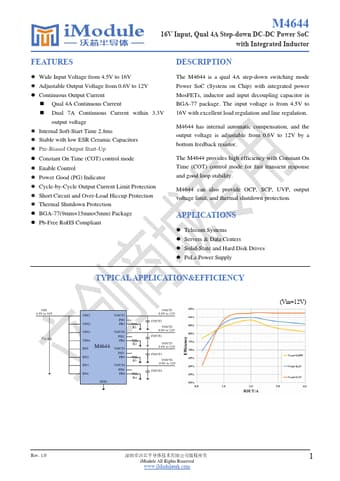

datasheet Preview Page 1 from Datasheet4u.com

M4644-iModule.pdf

M4644 Datasheet Preview — Preview of M4644 PDF

Datasheet Details

Part number:

M4644

Manufacturer:

iModule

File Size:

604.69 KB

Description:

Qual 4A Step-down DC-DC Power SoC

Features

* Wide Input Voltage from 4.5V to 16V
* Adjustable Output Voltage from 0.6V to 12V
* Continuous Output Current
* Qual 4A Continuous Current
* Dual 7A Continuous Current within 3.3V output voltage
* Internal Soft-Start Time 2.8ms
* Stable with low ESR Ceramic Capacitors

Applications

* Telecom Systems
* Servers & Data Centers
* Solid-State and Hard Disk Drives
* PoLs Power Supply TYPICAL APPLICATION&EFFICIENCY VIN 4.5V to 18V CIN VIN1 VOUT1 PG1 VIN2 FB1 R1 VIN3 VOUT2 PG2 VIN4 FB2 EN1 M4644 VOUT3 R2 PG3 EN2 FB3 R3 EN3 VOUT4 PG4 EN4 FB4 R4 G
