DIN-50A - RAIL-MOUNTABLE CURRENT SENSOR

imperix

DIN-50A Description

±50 A DIN RAIL-MOUNTABLE CURRENT SENSORS GENERAL .
The ModuLink ±50A isolated current sensors are easyto-use devices, tailored for power electronics applications.

DIN-50A Features

* AND SPECIFICATIONS
* ± 50 A measuring range
* 0.2-6mm2 conductor cross-section (AWG 10-24)
* Minimum 200 kHz measurement bandwidth
* Balanced full-differential signal output
* Typical sensitivity of 99.0 mV/A

DIN-50A Applications

* When employed with imperix’s BoomBox control platform, the sensors provide plug&play connectivity and can be directly powered by the control platform. The devices produce a balanced full-differential output signal, proportional to the current voltage. For best EMC performance, the output signal is

📥 Download Datasheet

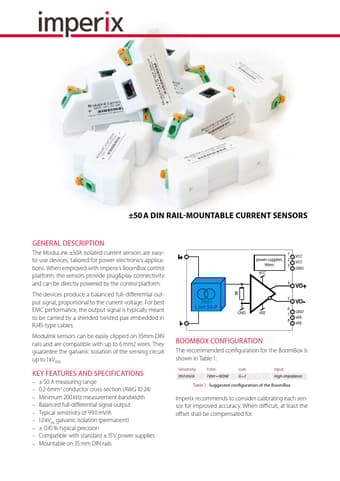

DIN-50A Datasheet Preview — Preview of DIN-50A PDF

Datasheet Details

Part number: DIN-50A
Manufacturer: imperix
File Size: 272.43 KB
Datasheet: DIN-50A-imperix.pdf
Description: RAIL-MOUNTABLE CURRENT SENSOR
