DIN-800V DIN RAIL-MOUNTABLE VOLTAGE SENSOR

imperix

Description

±800 V DIN RAIL-MOUNTABLE VOLTAGE SENSORS GENERAL .
The ModuLink ±800 V isolated voltage sensors are easyto-use devices, tailored for power electronics applications.

📥 Download Datasheet

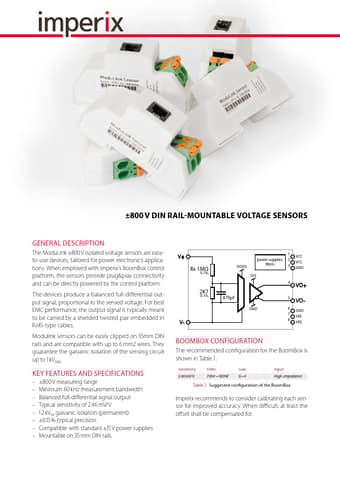

DIN-800V Datasheet Preview — Preview of DIN-800V PDF

Datasheet Specifications

Part number: DIN-800V
Manufacturer: imperix
File Size: 242.54 KB
Datasheet: DIN-800V-imperix.pdf
Description: DIN RAIL-MOUNTABLE VOLTAGE SENSOR

Features

* AND SPECIFICATIONS
* ±800 V measuring range
* Minimum 60 kHz measurement bandwidth
* Balanced full-differential signal output
* Typical sensitivity of 2.46 mV/V
* 1.2 kVPK galvanic isolation (permanent)

Applications

* When employed with imperix’s BoomBox control platform, the sensors provide plug&play connectivity and can be directly powered by the control platform. The devices produce a balanced full-differential output signal, proportional to the sensed voltage. For best EMC performance, the output signal is t
