ISL71030M - Radiation Tolerant 5V 16-Channel Analog Multiplexer

Description

The ISL71030M is a radiation tolerant, 16-channel multiplexer that is fabricated using the proprietary P6 SOI process technology to provide excellent latch-up performance.

Features

  • Qualified to Renesas Rad Tolerant Screening and QCI Flow (R34TB0004EU).
  • Fabricated using P6 SOI process technology.
  • Rail-to-rail operation.
  • No latch-up.
  • Low rDS(ON):.

📥 Download Datasheet

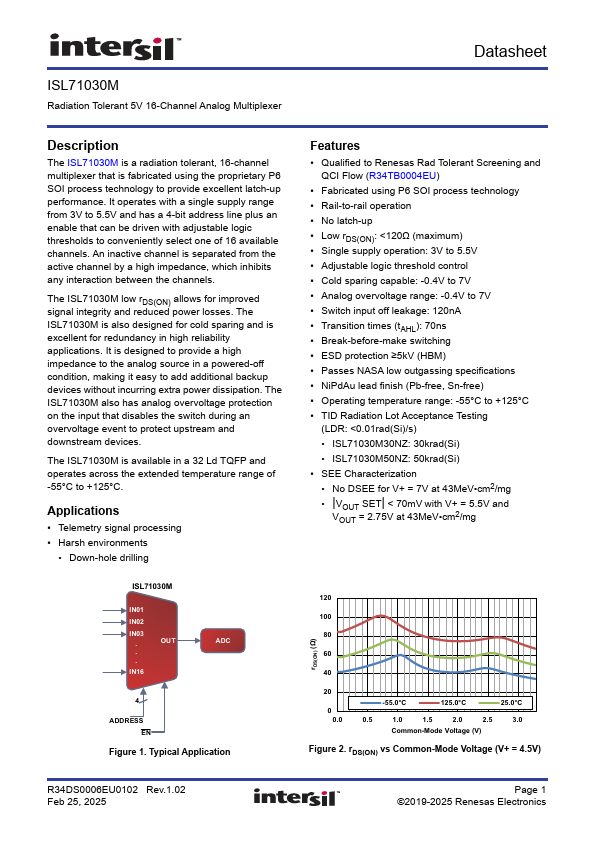

Datasheet preview – ISL71030M

Datasheet Details

Part number ISL71030M
Manufacturer intersil
File Size 702.73 KB
Description Radiation Tolerant 5V 16-Channel Analog Multiplexer
Datasheet download datasheet ISL71030M Datasheet

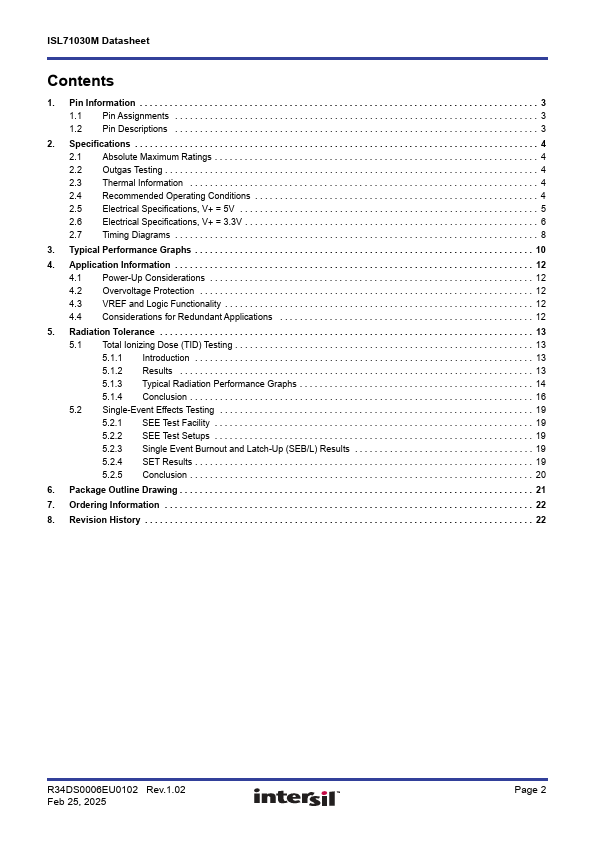

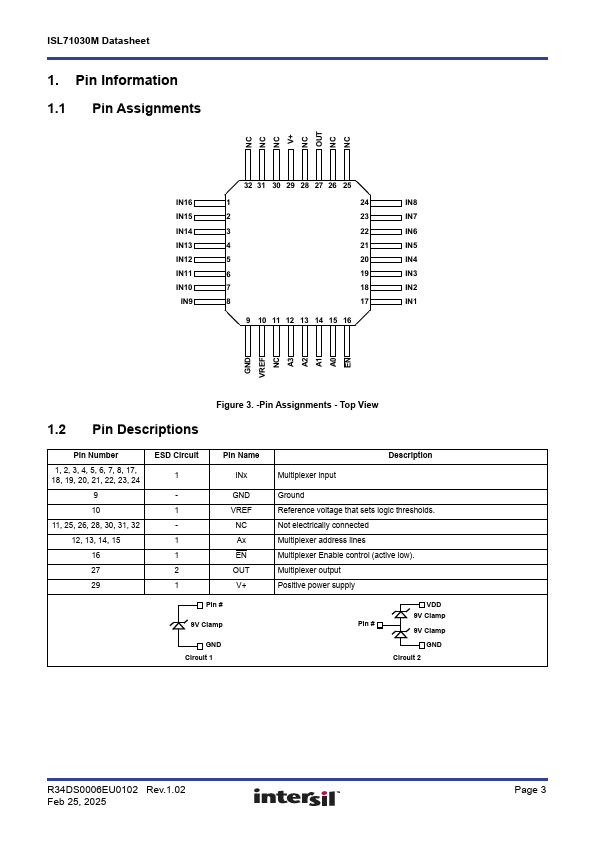

Additional preview pages of the ISL71030M datasheet.

📁 Similar Datasheet

  • ISL71090SEHF25 - Radiation Hardened Ultra Low Noise / Precision Voltage Reference (Intersil Corporation)
  • ISL7119RH - Radiation Hardened High Speed Dual Voltage Comparator (Intersil Corporation)
  • ISL7124SRH - Quad Operational Amplifiers (Intersil Corporation)
  • ISL70001SRH - Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator (Intersil Corporation)
  • ISL72026SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72027SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72028SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72991RH - Radiation Hardened Negative Low Dropout Adjustable Voltage Regulator (Intersil Corporation)
  • ISL73096RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor (Intersil Corporation)
  • ISL73127RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor (Intersil Corporation)
Other Datasheets by intersil
  • ISL71001M - 6A Synchronous Buck Regulator
  • ISL71010B25 - 2.5V Precision Voltage Reference
  • ISL71010B50 - 5V Precision Voltage Reference
  • ISL71026M - 3.3V CAN Transceiver
  • ISL71040M - Radiation Tolerant Low-Side GaN FET Driver
  • ISL71041M - Radiation Tolerant Single-Ended Current Mode PWM Controller
  • ISL71043M - Radiation Tolerant Single-Ended Current Mode PWM Controller
  • ISL71090SEH12 - Radiation Hardened Ultra Low Noise / Precision Voltage Reference

Full PDF Text Transcription

Click to expand full text
ISL71030M Radiation Tolerant 5V 16-Channel Analog Multiplexer Datasheet Description The ISL71030M is a radiation tolerant, 16-channel multiplexer that is fabricated using the proprietary P6 SOI process technology to provide excellent latch-up performance. It operates with a single supply range from 3V to 5.5V and has a 4-bit address line plus an enable that can be driven with adjustable logic thresholds to conveniently select one of 16 available channels. An inactive channel is separated from the active channel by a high impedance, which inhibits any interaction between the channels. The ISL71030M low rDS(ON) allows for improved signal integrity and reduced power losses. The ISL71030M is also designed for cold sparing and is excellent for redundancy in high reliability applications.
