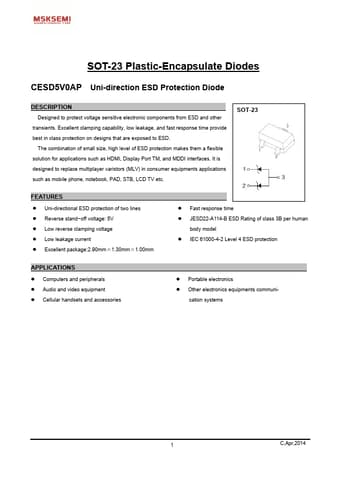

CESD5V0AP Datasheet, Diode, msksemi

✔ CESD5V0AP Features

Uni-directional ESD protection of two lines
Reverse stand
off voltage: 5V
Low reverse clamping voltage
Low leakage current
Excellent package:2.90mm×1.30mm×1.00m

✔ CESD5V0AP Application

such as HDMI, Display Port TM, and MDDI interfaces. It is designed to replace multiplayer varistors (MLV) in

PDF File Details

Part number:

CESD5V0AP

Manufacturer:

msksemi

File Size:

0.99MB

Download:

📄 Datasheet

Description:

Uni-direction esd protection diode. Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage

📥 Download PDF (0.99MB)
