CESD5V0D5 - ESD Protection Diode

JCET

📥 Download Datasheet

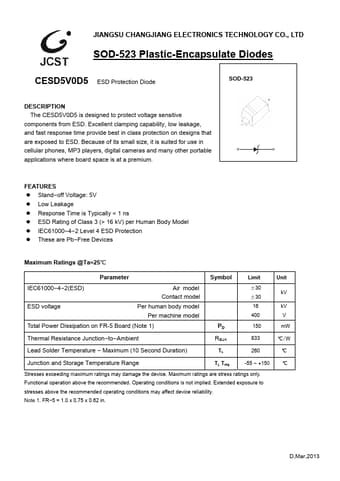

CESD5V0D5 Datasheet Preview — Preview of CESD5V0D5 PDF

Datasheet Details

Part number: CESD5V0D5
Manufacturer: JCET
File Size: 554.02 KB
Datasheet: CESD5V0D5-JCET.pdf
Description: ESD Protection Diode

CESD5V0D5 Product details

Description

The CESD5V0D5 is designed to protect voltage sensitive components from ESD.Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD.Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium.SOD-523 +

Features

z Stand.
off Voltage: 5V z Low Leakage z Response Time is Typically < 1 ns z ESD Rating of Class 3 (> 16 kV) per Human Body Model z IEC61000.
4.
2 Level 4 ESD Protection z These are Pb.
Free Devices Maximum Ratings @Ta=25℃ Parameter IEC61000.
4.
2(ESD) ESD voltage Air model Contact model Per human body model Per machine model Total Power Dissipation on FR-5 Board (Note 1) Symbol PD Limit ±30 ±30 16 400 150 Unit kV kV V mW Thermal Resistance Jun.
