CESD3V3D7 - ESD Protection Diodes

LGE

📥 Download Datasheet

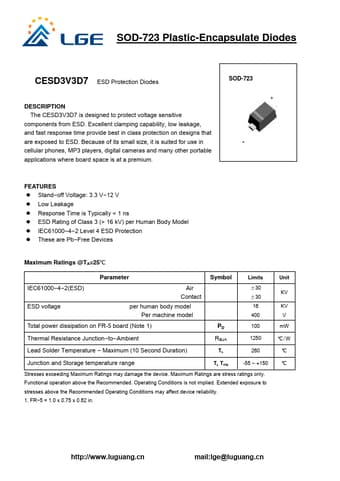

CESD3V3D7 Datasheet Preview — Preview of CESD3V3D7 PDF

Datasheet Details

Part number: CESD3V3D7
Manufacturer: LGE
File Size: 190.82 KB
Datasheet: CESD3V3D7-LGE.pdf
Description: ESD Protection Diodes

CESD3V3D7 Product details

Description

The CESD3V3D7 is designed to protect voltage sensitive components from ESD.Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD.Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium.SOD-723 - +

Features

z Stand.
off Voltage: 3.3 V.
12 V z Low Leakage z Response Time is Typically < 1 ns z ESD Rating of Class 3 (> 16 kV) per Human Body Model z IEC61000.
4.
2 Level 4 ESD Protection z These are Pb.
Free Devices Maximum Ratings @TA=25℃ IEC61000.
4.
2(ESD) ESD voltage Parameter Air Contact per human body model Per machine model Symbol Limits ±30 ±30 16 400 Total power dissipation on FR-5 board (Note 1) PD 100 Thermal Resistance Junction.
