CESD12VAP - ESD Protection Diode

JCET

📥 Download Datasheet

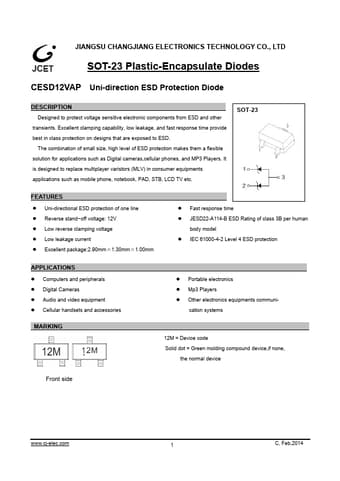

CESD12VAP Datasheet Preview — Preview of CESD12VAP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CESD12VAP
Manufacturer: JCET
File Size: 816.65 KB
Datasheet: CESD12VAP-JCET.pdf
Description: ESD Protection Diode

CESD12VAP Product details

Description

Designed to protect voltage sensitive electronic components from ESD and other transients.

Features

Uni-directional ESD protection of one line.
Reverse stand.
off voltage: 12V.
Low reverse clamping voltage.
Low leakage current.
Excellent package:2.90mm×1.30mm×1.00mm.
Fast response time.
JESD22-A114-B ESD Rating of class 3B per human body model.
IEC 61000-4-2 Level 4 ESD protection.
