CESD5V0D5 - ESD ProtectionDiodes

This page provides the datasheet information for the CESD5V0D5, a member of the CESD3V3D5 ESD ProtectionDiodes family.

Datasheet Summary

Description

The CESD3V3D5 THRU CESD24VD5 is designed to protect voltage sensitive components from ESD.

Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD.

SMC Diode

📥 Download Datasheet

Datasheet Details

Part number	CESD5V0D5
Manufacturer	SMC Diode
File Size	230.35 KB
Description	ESD ProtectionDiodes
Datasheet	CESD5V0D5 Datasheet
Additional preview pages of the CESD5V0D5 datasheet.

📁 Similar Datasheet

CESD5V0D5 - ESD Protection Diode (JCET)
CESD5V0D1 - ESD Protection Diode (JCET)
CESD5V0D3 - ESD Protection Diode (JCET)
CESD5V0D7 - ESD Protection Diode (JCET)
CESD5V0D9 - ESD Protection Diode (JCET)
CESD5V0AP - Uni-direction ESD Protection Diode (msksemi)
CESD5V0AP - ESD Protection Diode (JCET)
CESD5V0J4 - ESD Protection Diode (JCET)
CESD5V0K5 - ESD Protection Diode (JCET)
CESD5V0L4 - ESD Protection Diode (JCET)

Other Datasheets by SMC Diode

CESD12VD5 - ESD ProtectionDiodes
CESD15VD5 - ESD ProtectionDiodes
CESD24VD5 - ESD ProtectionDiodes
CESD3V3D5 - ESD ProtectionDiodes

Full PDF Text Transcription

Click to expand full text

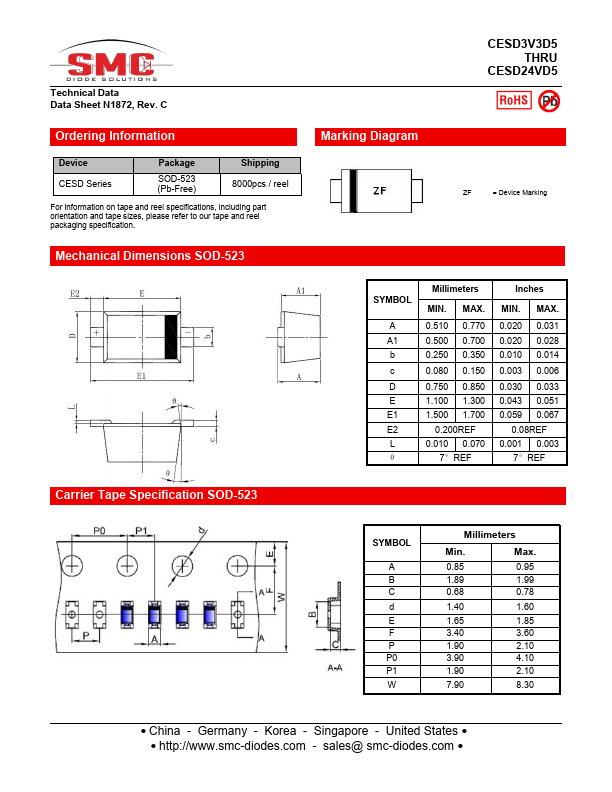

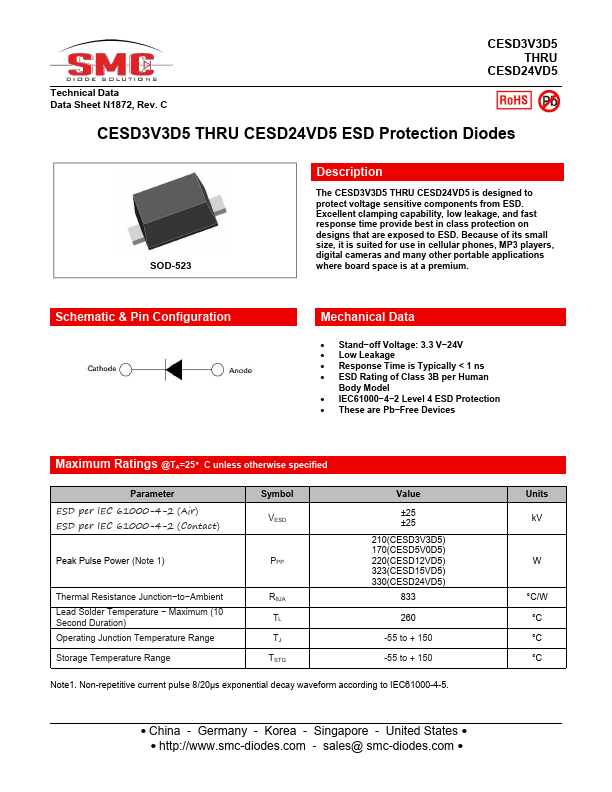

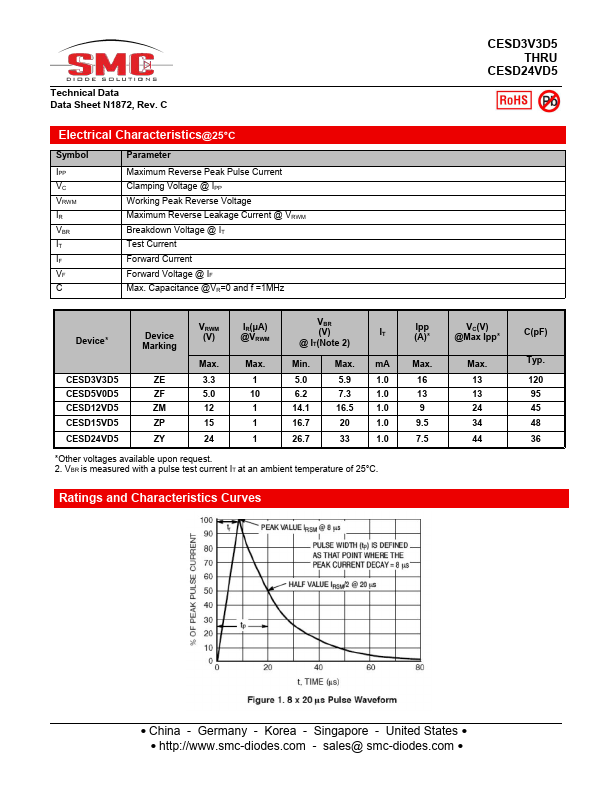

Technical Data Data Sheet N1872, Rev. C CESD3V3D5 THRU CESD24VD5 CESD3V3D5 THRU CESD24VD5 ESD Protection Diodes SOD-523 Description The CESD3V3D5 THRU CESD24VD5 is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium. Schematic & Pin Configuration Mechanical Data  Stand−off Voltage: 3.
