CESD12VD5, CESD3V3D5 ESD ProtectionDiodes

CESD12VD5 Description

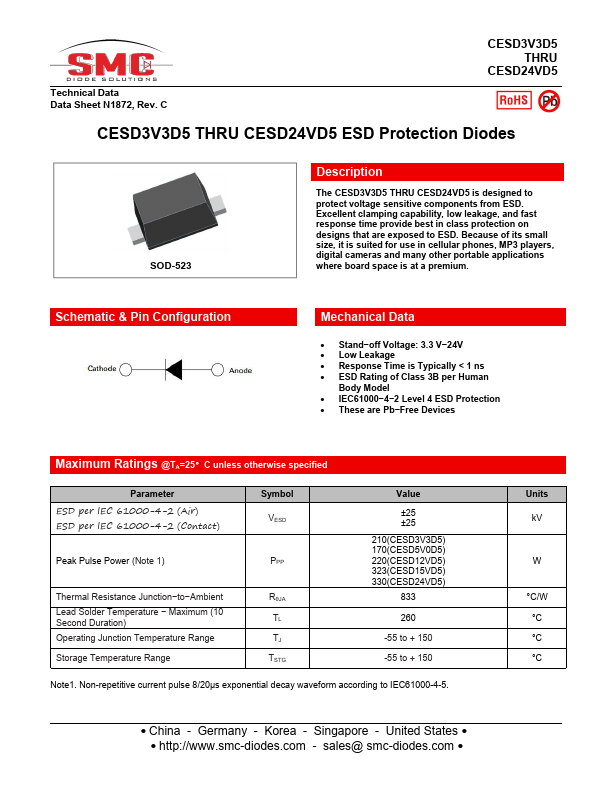

Technical Data Data Sheet N1872, Rev.C CESD3V3D5 THRU CESD24VD5 CESD3V3D5 THRU CESD24VD5 ESD Protection Diodes SOD-523 .
The CESD3V3D5 THRU CESD24VD5 is designed to protect voltage sensitive components from ESD.

CESD12VD5 Applications

* where board space is at a premium. Schematic & Pin Configuration Mechanical Data
* Stand
* off Voltage: 3.3 V
* 24V
* Low Leakage
* Response Time is Typically < 1 ns
* ESD Rating of Class 3B per Human Body Model
* IEC61000
* 4
* 2 Level 4 ESD Protection

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CESD12VD5, CESD3V3D5. Please refer to the document for exact specifications by model.

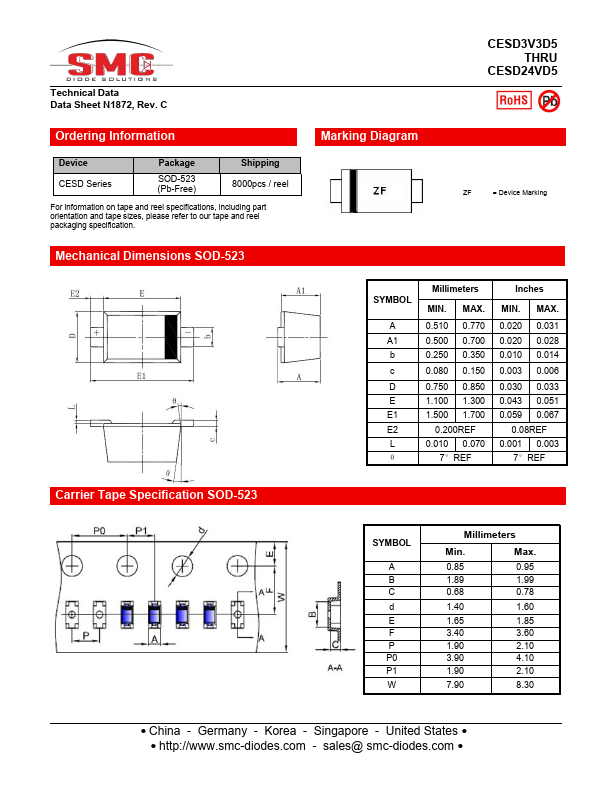

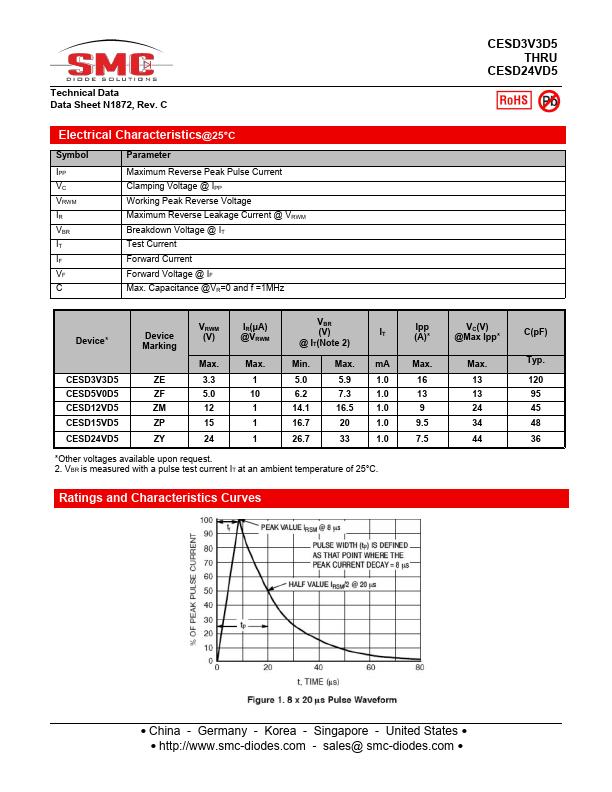

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CESD12VD5, CESD3V3D5
Manufacturer
SMC Diode
File Size
230.35 KB
Datasheet
CESD3V3D5-SMCDiode.pdf
Description
ESD ProtectionDiodes
Note
This datasheet PDF includes multiple part numbers: CESD12VD5, CESD3V3D5.
Please refer to the document for exact specifications by model.
