CESD15VD5

ESD Protection Diode

CESD15VD5 Features

* z Uni-directional ESD protection of one line z Reverse stand

* off voltage: 15V z Low reverse clamping voltage z Low leakage current z Excellent package:1.20mm×0.80mm×0.60mm z Fast response time z JESD22-A114-B ESD Rating of class 3B per human body model z IEC 61000-4-2 Level 3 ESD protection

CESD15VD5 General Description

Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high.

CESD15VD5 Datasheet (778.49 KB)

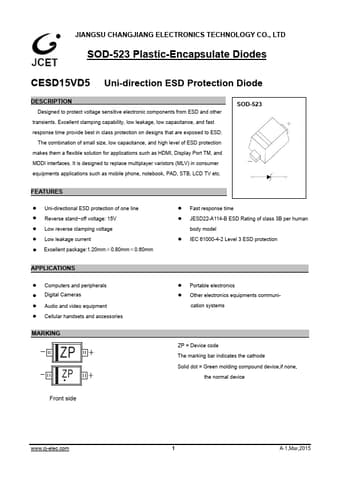

Preview of CESD15VD5 PDF

Datasheet Details

Part number:

CESD15VD5

Manufacturer:

JCET

File Size:

778.49 KB

Description:

Esd protection diode.
