CESD12VD7 - ESD Protection Diode

Datasheet Summary

Description

Designed to protect voltage sensitive electronic components from ESD and other transients.

Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD.

Features

  • z Uni-directional ESD protection of one line z Reverse stand.
  • off voltage: 12V z Low reverse clamping voltage z Low leakage current z Excellent package:1.00mm×0.60mm×0.55mm z Fast response time z JESD22-A114-B ESD Rating of class 3B per human body model z IEC 61000-4-2 Level 4 ESD protection.

📥 Download Datasheet

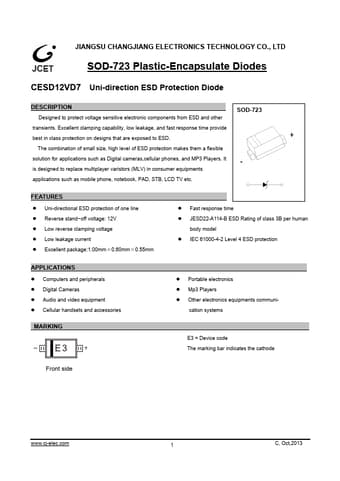

Datasheet preview – CESD12VD7

Datasheet Details

Part number CESD12VD7
Manufacturer JCET
File Size 730.83 KB
Description ESD Protection Diode
Datasheet download datasheet CESD12VD7 Datasheet
Additional preview pages of the CESD12VD7 datasheet.

📁 Similar Datasheet

Other Datasheets by JCET

Full PDF Text Transcription

Click to expand full text
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOD-723 Plastic-Encapsulate Diodes CESD12VD7 Uni-direction ESD Protection Diode DESCRIPTION Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, high level of ESD protection makes them a flexible solution for applications such as Digital cameras,cellular phones, and MP3 Players. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc.
