CESD3V3D3 - ESD Protection Diode

Datasheet Summary

Description

Designed to protect voltage sensitive electronic components from ESD and other transients.

Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD.

Features

  • Uni-directional ESD protection of one line.
  • Reverse stand.
  • off voltage: 3.3V.
  • Low reverse clamping voltage.
  • Low leakage current.
  • Excellent package:1.70mm×1.30mm×1.00mm.
  • Fast response time.
  • JESD22-A114-B ESD Rating of class 3B per human body model.
  • IEC 61000-4-2 Level 4 ESD protection.

📥 Download Datasheet

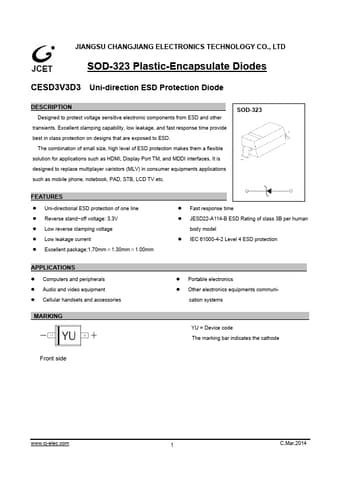

Datasheet preview – CESD3V3D3

Datasheet Details

Part number CESD3V3D3
Manufacturer JCET
File Size 695.39 KB
Description ESD Protection Diode
Datasheet download datasheet CESD3V3D3 Datasheet
Additional preview pages of the CESD3V3D3 datasheet.

📁 Similar Datasheet

Other Datasheets by JCET

Full PDF Text Transcription

Click to expand full text
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOD-323 Plastic-Encapsulate Diodes CESD3V3D3 Uni-direction ESD Protection Diode DESCRIPTION Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, high level of ESD protection makes them a flexible solution for applications such as HDMI, Display Port TM, and MDDI interfaces. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc. SOD-323 FEATURES  Uni-directional ESD protection of one line  Reverse stand−off voltage: 3.
