CESD3V3D5

ESD Protection Diode

JCET

CESD3V3D5 Features

* Uni-directional ESD protection of one line

* Reverse stand

* off voltage: 3.3V

* Low reverse clamping voltage

* Low leakage current

* Excellent package:1.2mm×0.8mm×0.6mm

* Fast response time

* JESD22-A114-B ESD Rating of class 3B per human body model

* IEC 61

CESD3V3D5 General Description

Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, high level of ESD protection makes them a .

CESD3V3D5 Datasheet (553.67 KB)

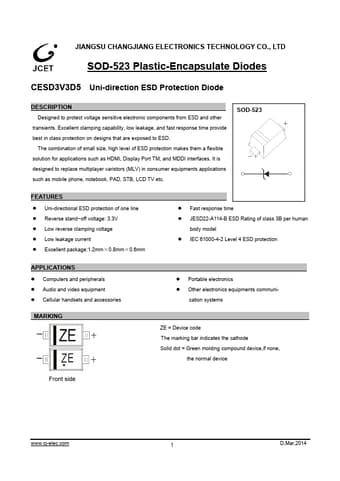

CESD3V3D5 Datasheet Preview — Preview of CESD3V3D5 PDF

Datasheet Details

Part number:

CESD3V3D5

Manufacturer:

JCET

File Size:

553.67 KB

Description:

Esd protection diode.
