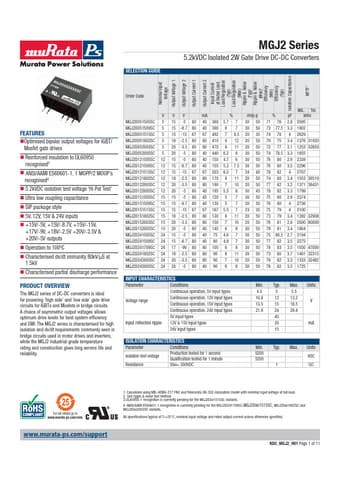

MGJ2D151505SC Datasheet - muRata

MGJ2D151505SC 5.2kVDC Isolated 2W Gate Drive DC-DC Converters

MGJ2D151505SC Features

* Optimised bipolar output voltages for IGBT/ Mosfet gate drives

* Reinforced insulation to UL60950 recognised3

* ANSI/AAMI ES60601-1, 1 MOPP/2 MOOP’s recognised4

* 5.2kVDC isolation test voltage ‘Hi Pot Test’

* Ultra low coupling capacitance

* SIP pack

Datasheet Details

MGJ2D151505SC

muRata

252.14 KB

5.2kvdc isolated 2w gate drive dc-dc converters.
