MGJ2D151509SC Features
* Optimised bipolar output voltages for IGBT/ Mosfet gate drives
* Reinforced insulation to UL60950 recognised3
* ANSI/AAMI ES60601-1, 1 MOPP/2 MOOP’s recognised4
* 5.2kVDC isolation test voltage ‘Hi Pot Test’
* Ultra low coupling capacitance
* SIP pack

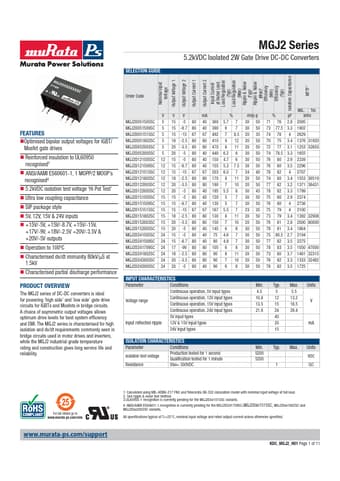

Datasheet Details
MGJ2D151509SC, MGJ2D051505SC
muRata
252.14 KB
5.2kvdc isolated 2w gate drive dc-dc converters.
This datasheet PDF includes multiple part numbers: MGJ2D151509SC, MGJ2D051505SC.
Please refer to the document for exact specifications by model.
